Cam & Deflection Technology

In the complex choreography of a high-speed production environment, timing is the ultimate currency. The mechanical intelligence of a line is often housed within its Cam Discs and Deflection Plates, the critical nodes that translate rotary motion into precise linear action or manage the transition of heavy-duty chain systems. WELSCH provides the high-performance kinetic logic required to ensure your plant's industrial rhythm remains flawless, even under extreme cycle loads.

We specialize in the high-precision milling of complex cam profiles used in synchronized cutting tables and phasing units. These plates act as the mechanical programmers of your production cycle. Utilizing 3D CAD and Hybrid Modeling data, we mill the exact acceleration and deceleration curves required for a clean, synchronized cut. Our surgical precision eliminates the profile deviations that lead to blade-chatter or uneven product lengths.

Because cam followers exert massive point-pressure, we utilize premium AISI D2 (1.2379) or M2 High-Speed Steel. Following vacuum hardening, we finish the profiles to a sub-micron surface quality to minimize friction and prevent pitting over millions of cycles.

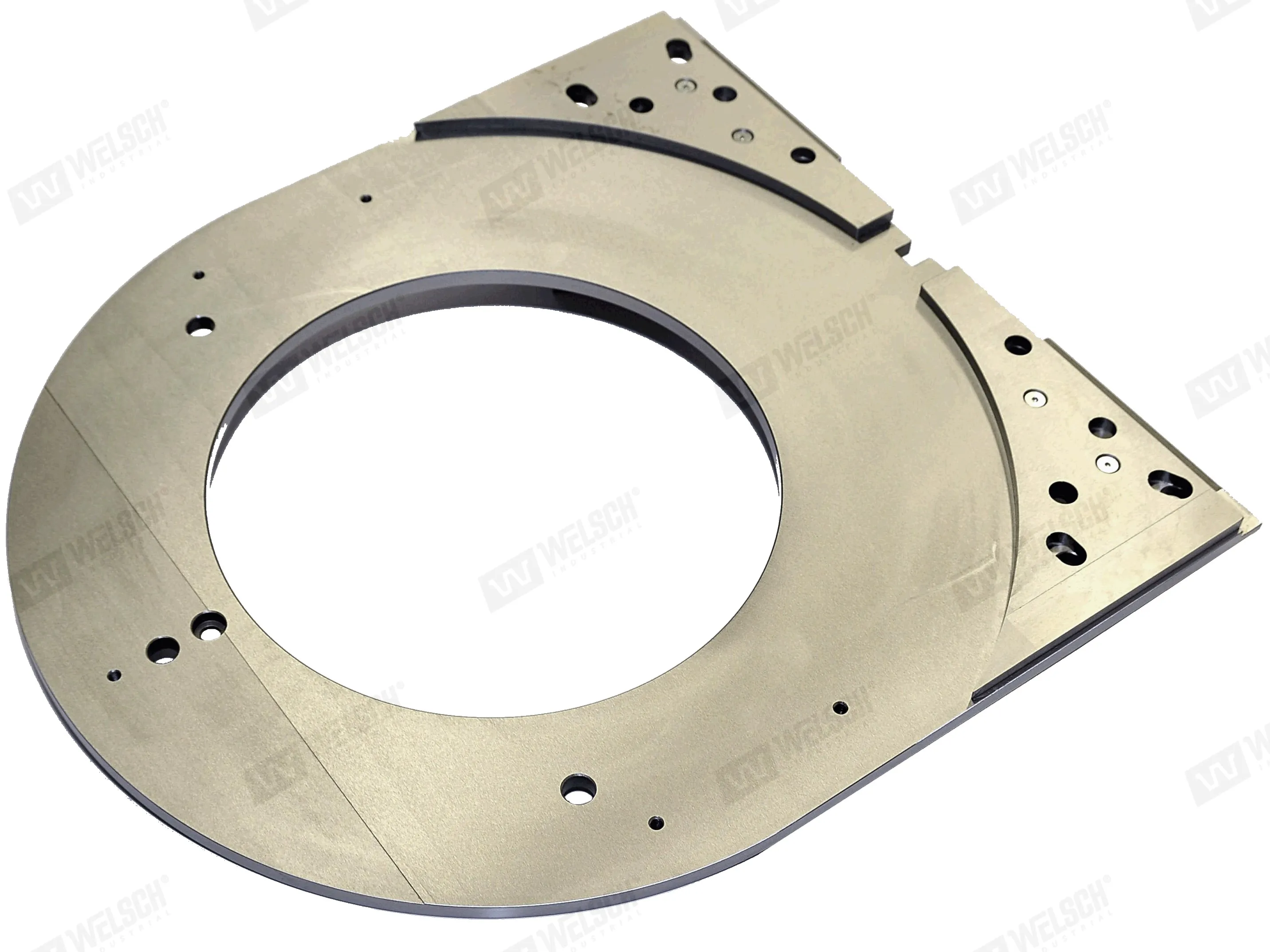

For Rolling Block Link Chain conveyors, the deflection plates are the primary wear-points. We engineer these components to handle aggressive forces of high-speed direction changes with macro-scale precision for formats up to 1,200 mm x 500 mm x 300 mm. We also specialize in forensic reverse engineering of cam plates for legacy machines where original timing diagrams have been lost, providing full documentation and native CAD data for strategic data sovereignty.
